Connecting Speakers
We have designed a speaker interface to connect at the output of the rest of emi circuits. It is a small circuit when you can find a trimmer to modify the volume and a couple of pin headers to interface with another circuits.
Schematics:
Important: There is a mistake in the pin headers labels in our boards. The input and output labels have been interchanged so you have to solder the speaker to the pin header labeled "IN".

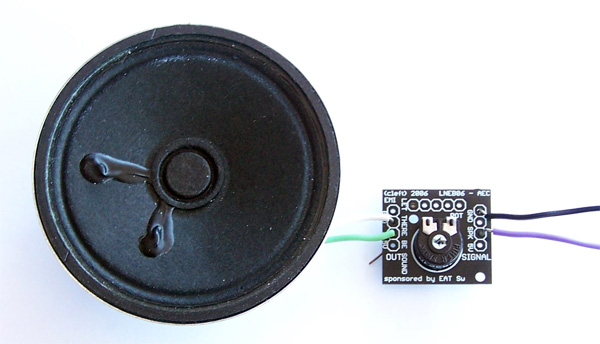

Photos:
|
|
|
|
